Tennis-Analysis-System
Tennis-Analysis-System is a system that analyzes tennis matches and provides player statistics and mini court visualizations and It utilizes YOLO (You Only Look Once) v8x for player detection and tracking, and fine-tunes YOLOv5 for ball detection and tracking. Additionally, a ResNet50 model is used for keypoint detection and tracking.
Usage
- Clone the repository:
| |
- Install the required dependencies:
| |
- Run the main script:
| |
Sample Output
Datasets
Ball Detection
For ball detection, we used the tennis-ball-detection dataset from Roboflow. You can access it at the following link:
Keypoint Detection
For keypoint detection, we used a dataset collected by yastrebksv. You can download it from the link below:
You can also download it using the code provided in the Tennis-Analysis-system\fine_tuning\explore.ipynb notebook.
Results

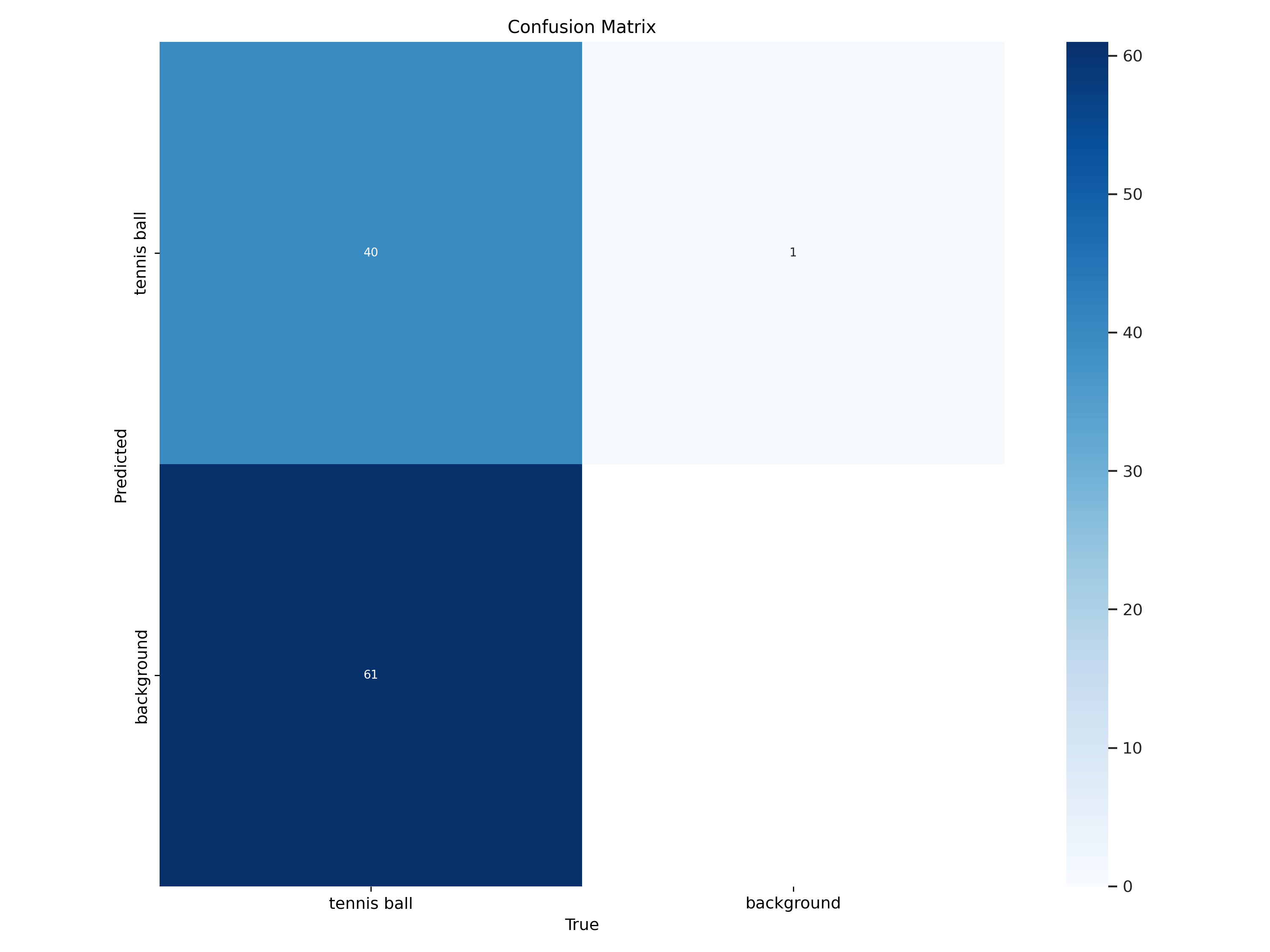

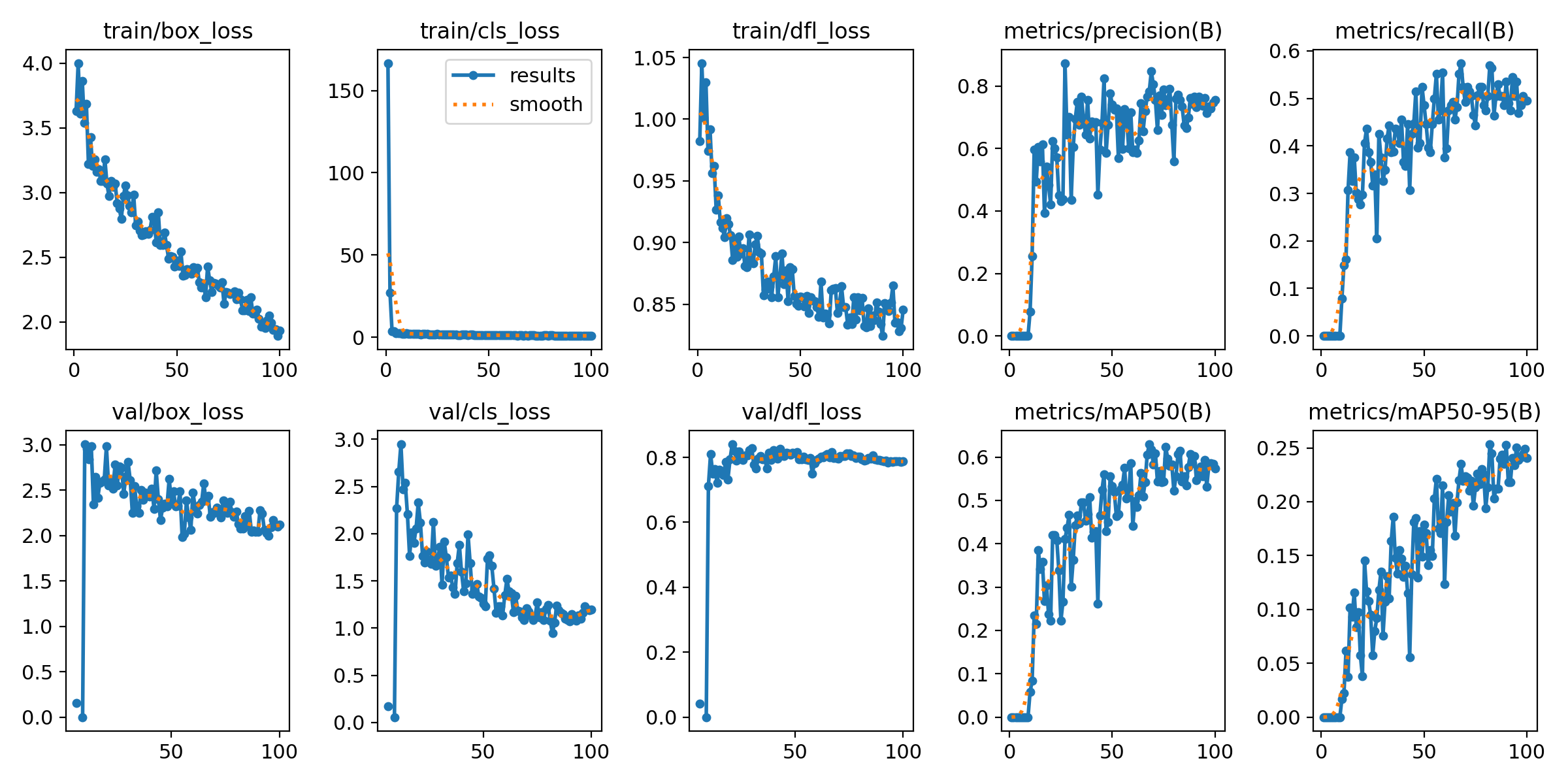

Fine-tuning YOLOv5 for Ball Detection
| Epoch | Train/Box Loss | Train/Cls Loss | Train/Dfl Loss | Precision (B) | Recall (B) | Val/Box Loss | Val/Cls Loss |
|---|---|---|---|---|---|---|---|
| 95 | 2.052 | 0.94742 | 0.86513 | 0.76142 | 0.53465 | 1.9983 | 1.1024 |
| 96 | 1.9937 | 0.90107 | 0.83483 | 0.71385 | 0.46934 | 2.0944 | 1.1647 |
| 97 | 1.9396 | 0.88057 | 0.83543 | 0.73493 | 0.48515 | 2.1743 | 1.233 |
| 98 | 1.9461 | 0.92784 | 0.82794 | 0.72858 | 0.50497 | 2.1229 | 1.2019 |
| 99 | 1.8929 | 0.82987 | 0.83066 | 0.74648 | 0.49505 | 2.0971 | 1.1892 |
| 100 | 1.933 | 0.88627 | 0.84558 | 0.75446 | 0.49505 | 2.1242 | 1.1936 |

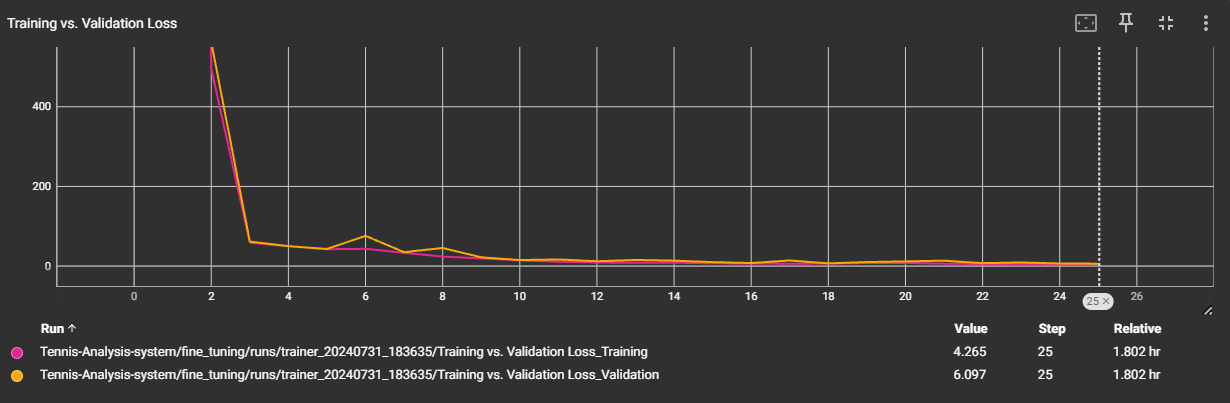

Fine-tuning ResNet50 for Keypoint Detection
Features
- Player detection and tracking using YOLOv8
- Ball detection and tracking using YOLOv5 (fine-tuned)
- Keypoint detection and tracking using a Resnet50 model (fine-tuned)
- Mini court visualizations with player and ball positions
- Player statistics calculation
Limitations
- Mini-court coordination is not generic (It needs the true height of the player to convert the proportion of meters to pixels).
